PaliGemma — The Evolving Transformer

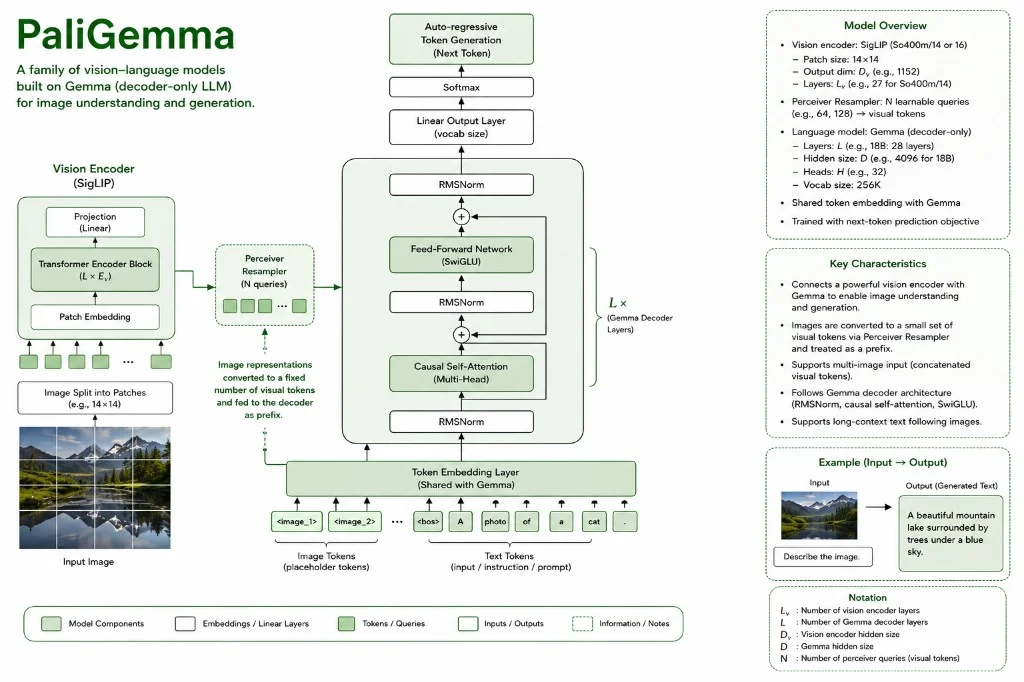

PaliGemma 3B · SigLIP-So400m/14 · LinearProjector · Gemma-2B decoder · next-token LM

PaliGemma joins two pretrained stacks: SigLIP-So400m/14 (vision) and Gemma-2B (language). Patch features are projected into Gemma’s embedding space and prepended as a visual prefix; the decoder then runs one causal forward pass over [image tokens + text] and generates captions, answers, OCR, or task-specific tokens.

Unlike CLIP, this is generative — not contrastive retrieval. The image is context, not a similarity target.

00 · DELTA FROM CLIP

The shift from matching to generating

CLIP (stop 14) was contrastive: encode image and text separately, push matching pairs together in a shared embedding space. PaliGemma is generative: the image is processed by a vision encoder, then its patch tokens are prepended to the text sequence so a causal language model can generate tokens conditioned on what it sees.

This introduces several new design decisions: two completely independent hidden dimensions (vision vs language), a LinearProjector bridge between them, two different normalisation strategies (LayerNorm for vision, RMSNorm for language), and a SwiGLU MLP in the language decoder. The result is a model that can answer questions, caption images, and do visual QA — all through next-token prediction.

PaliGemma vs CLIP (stop 14)

No contrastive loss, no CLS token, no L2 normalisation — generative, not matching
SigLIP outputs all N patches; CLIP's ImageEncoder compressed to 1 vector
LinearProjector maps vision_dmodel → gemma_dmodel across two different hidden dims
Language decoder is a full causal LM with weight tying (lm_head ↔ wte)
Two different norms: LayerNorm in SigLIP, RMSNorm in Gemma
SwiGLU MLP in Gemma vs plain GELU in CLIP/SigLIP

01 · CONFIG

PaliGemmaConfig — dual sub-configs in one dataclass

PaliGemmaConfig vs CLIPConfig (stop 14)

CLIP had one dmodel for everything. PaliGemma has vision_dmodel=64 and gemma_dmodel=128 — the two sub-models live in different spaces
Two separate head counts: vision_H=8, gemma_H=8 — dk is different for each
New property total_seq_len = num_patches + max_text_len — the Gemma decoder operates over this combined length
gemma_dff is a computed property (4 × gemma_dmodel), not a stored field

The config is a dataclass with separate vision and Gemma fields. Teaching code uses tiny tensors; production PaliGemma 1 scale is below.

PaliGemma 1 (paper scale)

VisionSigLIP-So400m/14 · patch 14 · ~400M backbone

LanguageGemma-2B causal decoder

Total~3B parameters

BridgeLinearProjector: vision_dim → gemma_dim

Resolutions224 / 448 / 896 input sizes (variants)

paligemma.pylines 14–57

 14@dataclass
 15class PaliGemmaConfig:
 16    B: int = 2               # batch size
 17    dropout: float = 0.1
 18    norm_eps: float = 1e-6
 20    # --- SigLIP vision encoder ---
 21    image_size: int = 32
 22    patch_size: int = 8
 23    C: int = 3
 24    vision_dmodel: int = 64  # vision hidden dim
 25    vision_H: int = 8        # vision heads → dk = 64/8 = 8
 26    vision_N: int = 2
 27    vision_dff: int = 256
 29    # --- Gemma language model ---
 30    vocab_size: int = 1000
 31    max_text_len: int = 16
 32    gemma_dmodel: int = 128  # language hidden dim — different from vision
 33    gemma_H: int = 8         # language heads → dk = 128/8 = 16
 34    gemma_N: int = 2
 36    @property
 37    def vision_dk(self):
        return self.vision_dmodel // self.vision_H
 40    @property
 41    def gemma_dk(self):
        return self.gemma_dmodel // self.gemma_H
 44    @property
 45    def gemma_dff(self):
        return 4 * self.gemma_dmodel   # SwiGLU inner dim
 49    @property
 50    def num_patches(self):
        return (self.image_size // self.patch_size) ** 2
 54    @property
 55    def total_seq_len(self):
        # Gemma sees: [image patches] + [text tokens]
        return self.num_patches + self.max_text_len

02 · LAYERNORM (SigLIP)

LayerNorm — subtracts mean before scaling

LayerNorm vs CLIP's LayerNormalization (stop 14)

Functionally identical — both compute alpha * (x - mean) / (std + eps) + bias
CLIP used it everywhere; here it is used only in SigLIP (the vision sub-model)
Gemma uses RMSNorm instead — see section 03
Subtracting the mean makes outputs zero-centered, which suits vision features

Two learnable parameters: alpha (scale, initialised to ones) and bias (shift, initialised to zeros). The std is computed along the last dimension (feature axis), not batch or sequence. This is standard LayerNorm — it normalises each token's feature vector independently.

paligemma.pylines 71–82

 71class LayerNorm(nn.Module):
 72    # z = alpha * (x - mean) / (std + eps) + bias
 73    def __init__(self, dmodel, eps=1e-6):
 74        super().__init__()
 75        self.eps   = eps
 76        self.alpha = nn.Parameter(torch.ones(dmodel))
 77        self.bias  = nn.Parameter(torch.zeros(dmodel))
 79    def forward(self, x):
 80        mean = x.mean(dim=-1, keepdim=True)
 81        std  = x.std(dim=-1, keepdim=True)
 82        return self.alpha * ((x - mean) / (std + self.eps)) + self.bias

03 · RMSNORM (Gemma)

RMSNorm — faster norm without mean subtraction

RMSNorm vs LayerNorm (section 02)

No mean subtraction — skips the re-centering step entirely
Uses rsqrt (reciprocal square root) — numerically more stable than dividing by sqrt
Only one learnable parameter: weight (scale). No bias term.
Used in LLaMA, Gemma, PaLM — the standard for modern LLMs because it is faster and equally effective

The formula is x * rsqrt(mean(x²) + eps) * weight. The RMS acts as a scale normaliser: it computes how large the activations are on average and divides by that magnitude. No centering around zero is needed because modern LLMs with residual connections stay well-conditioned without it.

paligemma.pylines 85–96

 85class RMSNorm(nn.Module):
 86    # z = x / rms(x) * weight   where rms(x) = sqrt(mean(x²) + eps)
 87    # rsqrt(x) = 1/sqrt(x) — more numerically stable than dividing by sqrt
 88    def __init__(self, dmodel, eps=1e-6):
 89        super().__init__()
 90        self.eps    = eps
 91        self.weight = nn.Parameter(torch.ones(dmodel))
 93    def forward(self, x):
 95        rms = torch.rsqrt(x.pow(2).mean(dim=-1, keepdim=True) + self.eps)
 96        return x * rms * self.weight

▼ Show LayerNorm (section 02) side-by-side

LayerNorm vs RMSNormkey difference

  # LayerNorm — centers AND scales
  mean = x.mean(dim=-1, keepdim=True)
  std  = x.std(dim=-1, keepdim=True)
  return alpha * ((x - mean) / (std + eps)) + bias
  # RMSNorm — scales only, no centering
  rms = torch.rsqrt(x.pow(2).mean(dim=-1, keepdim=True) + eps)
  return x * rms * weight

04 · SIGLIP PATCH EMBEDDING

SigLIPPatchEmbedding — nn.Embedding for positions, not nn.Parameter

SigLIPPatchEmbedding vs CLIP PatchEmbedding (stop 14)

CLIP used nn.Parameter(torch.zeros(1, num_patches+1, dmodel)) — a raw tensor
SigLIP uses nn.Embedding(num_patches, vision_dmodel) — a lookup table, same as GPT-2's wpe
No CLS token prepended here — SigLIP does not use CLS at all
position_ids registered as a buffer (moves to GPU, not a learnable parameter)

The patch extraction works the same as CLIP: a Conv2d with kernel_size=stride=patch_size extracts and projects each patch in one step. The result is flattened from (B, dmodel, grid_h, grid_w) to (B, num_patches, dmodel) using flatten(2).transpose(1,2). Then positional embeddings are added by indexing into an nn.Embedding with position_ids = [0, 1, ..., num_patches-1].

paligemma.pylines 125–152

125class SigLIPPatchEmbedding(nn.Module):
126    # Conv2d with kernel=stride=patch_size: extracts + projects patches in one step
127    # position embedding: nn.Embedding lookup (same as GPT-2's wpe)
128    def __init__(self, config):
129        super().__init__()
130        self.patch_proj = nn.Conv2d(
131            in_channels  = config.C,
132            out_channels = config.vision_dmodel,
133            kernel_size  = config.patch_size,
134            stride       = config.patch_size,
135            bias         = False,
136        )
138        self.pos_embed = nn.Embedding(config.num_patches, config.vision_dmodel)
141        self.register_buffer(
142            "position_ids", torch.arange(config.num_patches).unsqueeze(0)
143        )
145    def forward(self, x):
147        x = self.patch_proj(x)      # (B, vision_dmodel, grid_h, grid_w)
148        x = x.flatten(2)            # (B, vision_dmodel, num_patches)
149        x = x.transpose(1, 2)       # (B, num_patches, vision_dmodel)
151        x = x + self.pos_embed(self.position_ids)  # (1, num_patches, vision_dmodel) broadcasts
152        return x                    # (B, num_patches, vision_dmodel)

05 · SIGLIP ATTENTION

SigLIPAttention — full bidirectional attention, no mask

SigLIPAttention vs CLIP MultiHeadAttention (stop 14)

CLIP's text tower used a causal mask; image tower had no mask but extracted the CLS token
SigLIPAttention has no mask at all — every patch attends freely to every other patch (bidirectional)
No CLS token to extract — all tokens flow through to the next layer
Shape throughout: (B, num_patches, vision_dmodel)

Standard multi-head self-attention. Q, K, V projections reshape to (B, H, S, dk), scaled dot-product scores are computed and softmaxed, then the attended values are reshaped back to (B, S, dmodel) before the output projection wo. Because this is the vision encoder, attention is bidirectional — each patch needs global context from all other patches to understand the image.

paligemma.pylines 160–184

160class SigLIPAttention(nn.Module):
161    # full (bidirectional) self-attention — no causal mask
163    def __init__(self, config):
164        super().__init__()
165        self.h      = config.vision_H
166        self.dk     = config.vision_dk
167        self.dmodel = config.vision_dmodel
168        self.wq = nn.Linear(self.dmodel, self.dmodel)
169        self.wk = nn.Linear(self.dmodel, self.dmodel)
170        self.wv = nn.Linear(self.dmodel, self.dmodel)
171        self.wo = nn.Linear(self.dmodel, self.dmodel)
172        self.dropout = nn.Dropout(config.dropout)
174    def forward(self, x):
175        B, S, _ = x.shape
176        q = self.wq(x).view(B, S, self.h, self.dk).transpose(1, 2)
177        k = self.wk(x).view(B, S, self.dk).transpose(1, 2)
178        v = self.wv(x).view(B, S, self.dk).transpose(1, 2)
179        scores = q @ k.transpose(-1, -2) / math.sqrt(self.dk)
180        # no mask — every patch attends to every other patch
181        scores = F.softmax(scores, dim=-1)
183        out = (scores @ v).transpose(1, 2).contiguous().view(B, S, self.dmodel)
184        return self.wo(out)

06 · SIGLIP FFN + ENCODER BLOCK

SigLIPFeedForward + SigLIPEncoderBlock

SigLIPFeedForward vs CLIP FeedForward (stop 14)

Same GELU-based two-layer MLP: dmodel → dff → GELU → dmodel
Uses vision_dmodel and vision_dff from config, not a unified dmodel
SigLIPEncoderBlock uses LayerNorm for both pre-norm steps (not RMSNorm)
Pre-norm residual pattern is identical to CLIP's TransformerBlock: x = x + sublayer(norm(x))

The feed-forward network expands the representation from vision_dmodel=64 to vision_dff=256 (4×), applies GELU, then projects back. The encoder block wraps attention and FFN with separate LayerNorm instances (norm1, norm2) following the pre-norm residual pattern standard since LLaMA.

paligemma.pylines 187–213

187class SigLIPFeedForward(nn.Module):
188    # standard GELU MLP — dmodel → dff → GELU → dmodel
190    def __init__(self, config):
191        super().__init__()
192        self.w_up   = nn.Linear(config.vision_dmodel, config.vision_dff)
193        self.w_proj = nn.Linear(config.vision_dff, config.vision_dmodel)
194        self.dropout = nn.Dropout(config.dropout)
196    def forward(self, x):
197        return self.w_proj(self.dropout(F.gelu(self.w_up(x))))
200class SigLIPEncoderBlock(nn.Module):
201    # pre-norm: x = x + sublayer(norm(x))
202    # uses LayerNorm (not RMSNorm — SigLIP is a vision model)
203    def __init__(self, config):
204        super().__init__()
205        self.norm1 = LayerNorm(config.vision_dmodel, config.norm_eps)
206        self.norm2 = LayerNorm(config.vision_dmodel, config.norm_eps)
207        self.attn  = SigLIPAttention(config)
208        self.ff    = SigLIPFeedForward(config)
210    def forward(self, x):
211        x = x + self.attn(self.norm1(x))
212        x = x + self.ff(self.norm2(x))
213        return x

07 · SIGLIP VISION ENCODER

SigLIPVisionEncoder — all patches kept, no pooling

SigLIPVisionEncoder vs CLIP ImageEncoder (stop 14)

CLIP's ImageEncoder prepended a CLS token and extracted it at the end → 1 vector per image
SigLIP has no CLS token — outputs all num_patches tokens → (B, num_patches, vision_dmodel)
Final LayerNorm after the blocks — CLIP had a linear projection head; SigLIP just normalises
Spatial information is fully preserved — Gemma can "look at" each patch position independently

The encoder stacks vision_N SigLIPEncoderBlocks and ends with a LayerNorm. Output shape is (B, num_patches, vision_dmodel) — all 16 patch tokens (for a 32×32 image with 8×8 patches) flow out. The LinearProjector then maps them into Gemma's space.

paligemma.pylines 221–233

221class SigLIPVisionEncoder(nn.Module):
222    def __init__(self, config):
223        super().__init__()
224        self.patch_embed = SigLIPPatchEmbedding(config)
225        self.blocks      = nn.ModuleList([SigLIPEncoderBlock(config) for _ in range(config.vision_N)])
226        self.norm        = LayerNorm(config.vision_dmodel, config.norm_eps)
228    def forward(self, images):
229        x = self.patch_embed(images)     # (B, num_patches, vision_dmodel)
230        for block in self.blocks:
231            x = block(x)
232        x = self.norm(x)
233        return x   # (B, num_patches, vision_dmodel) — ALL patches kept

08 · LINEAR PROJECTOR

LinearProjector — the bridge between two embedding spaces

LinearProjector — new in PaliGemma, nothing like it in CLIP

CLIP had a single shared embedding space — no translation needed
PaliGemma has two separate hidden dims: vision_dmodel=64 and gemma_dmodel=128
A single nn.Linear maps all patch tokens from vision space to language space
No activation, no LayerNorm — just a linear map. Simple is effective here.

The projector is deliberately minimal: one nn.Linear(vision_dmodel, gemma_dmodel). It operates on the token dimension, so the sequence length stays the same: input (B, num_patches, 64) → output (B, num_patches, 128). These 128-dim patch tokens are now in the same space as Gemma's word embeddings and can be concatenated with text tokens.

paligemma.pylines 254–260

254class LinearProjector(nn.Module):
255    def __init__(self, config):
256        super().__init__()
257        self.proj = nn.Linear(config.vision_dmodel, config.gemma_dmodel)
259    def forward(self, x):
260        return self.proj(x)   # (B, num_patches, gemma_dmodel)

At this point image patches have been fully translated into Gemma's language space. The next question is: what does Gemma look like?

09 · GEMMA SWIGLU

GemmaSwiGLU — gated multiplicative MLP

GemmaSwiGLU vs SigLIPFeedForward (section 06)

SigLIPFeedForward: x → Linear → GELU → Linear → out (sequential)
SwiGLU: two parallel projections — a gate and a content path — multiplied together
Three Linear layers (gate_proj, up_proj, down_proj) vs two in GELU FFN
All no bias — Gemma convention, saves parameters, no loss in quality
Used in LLaMA, Gemma, PaLM — state-of-the-art for language models

SwiGLU formula: out = down_proj( GELU(gate_proj(x)) * up_proj(x) ). The gate learns to suppress or amplify features multiplicatively — it is a soft "attention over the feature dimension". This is why SwiGLU tends to outperform plain GELU: the model has more control over which information passes through.

out = W_down · (GELU(W_gate · x) ⊙ W_up · x)

paligemma.pylines 286–305

286class GemmaSwiGLU(nn.Module):
287    # gate = GELU(gate_proj(x))   ← activation gate
288    # up   = up_proj(x)           ← content
289    # out  = down_proj(gate * up) ← element-wise multiply then project down
296    def __init__(self, config):
297        super().__init__()
298        self.gate_proj = nn.Linear(config.gemma_dmodel, config.gemma_dff, bias=False)
299        self.up_proj   = nn.Linear(config.gemma_dmodel, config.gemma_dff, bias=False)
300        self.down_proj = nn.Linear(config.gemma_dff, config.gemma_dmodel, bias=False)
302    def forward(self, x):
303        gate = F.gelu(self.gate_proj(x), approximate="tanh")
304        up   = self.up_proj(x)
305        return self.down_proj(gate * up)

10 · GEMMA ATTENTION + DECODER BLOCK

GemmaAttention + GemmaDecoderBlock — causal LM layers

GemmaAttention vs SigLIPAttention (section 05)

SigLIPAttention: no mask, full attention, has bias in projections
GemmaAttention: causal mask applied (text generation), no bias in any projection
Uses gemma_dmodel=128 and gemma_dk=16 — larger hidden dim than vision
GemmaDecoderBlock uses RMSNorm (not LayerNorm) — Gemma is an LLM, not a vision model

The attention mask is applied over the full combined sequence. The mask is registered as a buffer in GemmaDecoder, so it is sliced to [:S, :S] here where S is the current sequence length. The decoder block combines RMSNorm, GemmaAttention, and GemmaSwiGLU with the now-standard pre-norm residual structure.

paligemma.pylines 308–349

308class GemmaAttention(nn.Module):
309    # causal self-attention — no bias in projections (Gemma convention)
311    def __init__(self, config):
312        super().__init__()
316        self.wq = nn.Linear(self.dmodel, self.dmodel, bias=False)
317        self.wk = nn.Linear(self.dmodel, self.dmodel, bias=False)
318        self.wv = nn.Linear(self.dmodel, self.dmodel, bias=False)
319        self.wo = nn.Linear(self.dmodel, self.dmodel, bias=False)
322    def forward(self, x, mask=None):
327        scores = q @ k.transpose(-1, -2) / math.sqrt(self.dk)
328        if mask is not None:
329            scores = scores.masked_fill(mask[:S, :S] == 0, float("-inf"))
333        return self.wo(out)
336class GemmaDecoderBlock(nn.Module):
337    # pre-norm decoder block with RMSNorm + SwiGLU
339    def __init__(self, config):
340        super().__init__()
341        self.norm1 = RMSNorm(config.gemma_dmodel, config.norm_eps)
342        self.norm2 = RMSNorm(config.gemma_dmodel, config.norm_eps)
343        self.attn  = GemmaAttention(config)
344        self.mlp   = GemmaSwiGLU(config)
346    def forward(self, x, mask=None):
347        x = x + self.attn(self.norm1(x), mask)
348        x = x + self.mlp(self.norm2(x))
349        return x

11 · GEMMA DECODER

GemmaDecoder — image-prefix causal language model

GemmaDecoder vs GPT-2 Decoder (stop 02)

GPT-2: text tokens only → wte + wpe → blocks → LayerNorm → lm_head
GemmaDecoder: receives projected image tokens + text tokens, concatenates them before adding positional embeddings
Weight tying: lm_head.weight = wte.weight — the output matrix is the transposed input embedding. Used in GPT-2, LLaMA, Gemma.
Causal mask covers the full total_seq_len (patches + text) — text tokens cannot attend to future text, but can attend to all image tokens (they come first)
RMSNorm as final norm before lm_head (not LayerNorm)

The key forward step: torch.cat([image_tokens, text_embeds], dim=1) creates a combined sequence of length num_patches + S. Positional embeddings are added over the whole combined sequence. The causal mask is registered as a buffer of size total_seq_len × total_seq_len and sliced to [:S, :S] in each attention block for the current sequence length.

paligemma.pylines 357–402

357class GemmaDecoder(nn.Module):
360    def __init__(self, config):
361        super().__init__()
362        self.wte = nn.Embedding(config.vocab_size, config.gemma_dmodel)
363        # wpe covers the full combined sequence (patches + text)
364        self.wpe = nn.Embedding(config.total_seq_len, config.gemma_dmodel)
366        self.blocks   = nn.ModuleList([GemmaDecoderBlock(config) for _ in range(config.gemma_N)])
367        self.norm     = RMSNorm(config.gemma_dmodel, config.norm_eps)
368        self.lm_head  = nn.Linear(config.gemma_dmodel, config.vocab_size, bias=False)
372        self.lm_head.weight = self.wte.weight   # weight tying
375        self.register_buffer(
377            "mask", torch.tril(torch.ones(config.total_seq_len, config.total_seq_len))
378        )
380    def forward(self, image_tokens, text_tokens):
386        text_embeds = self.wte(text_tokens)                          # (B, S, gemma_dmodel)
390        x = torch.cat([image_tokens, text_embeds], dim=1)   # image prefix + text
393        pos = torch.arange(0, full_len, device=x.device)
395        x = self.drop(x + self.wpe(pos))
398        for block in self.blocks:
399            x = block(x, self.mask)
401        x = self.norm(x)
402        return self.lm_head(x)    # (B, num_patches+S, vocab_size)

12 · PALIGEMMA FULL MODEL

PaliGemma — three-stage forward pass

PaliGemma vs CLIP (stop 14) — full model comparison

CLIP: two separate encoders → two embeddings → contrastive loss
PaliGemma: vision encoder → projector → language decoder → token logits
Three sub-modules: vision_encoder, projector, language_model
Output shape (B, total_seq_len, vocab_size) — logits for every position
Trained with cross-entropy on the text positions (standard next-token prediction, conditioned on image prefix)

The full model is a clean three-step pipeline. Step 1: SigLIP encodes the image to patch tokens. Step 2: LinearProjector maps them into Gemma's space. Step 3: GemmaDecoder receives image tokens + text tokens, concatenates them, and predicts the next token at every position. The output at text positions contains predictions for captioning, VQA, and other vision-language tasks.

paligemma.pylines 422–439

422class PaliGemma(nn.Module):
423    def __init__(self, config):
424        super().__init__()
425        self.vision_encoder = SigLIPVisionEncoder(config)
426        self.projector      = LinearProjector(config)
427        self.language_model = GemmaDecoder(config)
429    def forward(self, images, text_tokens):
431        # step 1: encode all image patches with SigLIP
432        image_features = self.vision_encoder(images)         # (B, num_patches, vision_dmodel)
434        # step 2: project into Gemma's embedding space
435        image_tokens = self.projector(image_features)          # (B, num_patches, gemma_dmodel)
437        # step 3: Gemma generates logits over the combined sequence
438        logits = self.language_model(image_tokens, text_tokens)  # (B, patches+S, vocab)
439        return logits

SUMMARY

Architecture comparison table

Feature	CLIP (stop 14)	PaliGemma (stop 15)
Task	Contrastive matching (image ↔ text)	Generative: next-token prediction on image+text
Hidden dims	Single `dmodel` for all	Dual: `vision_dmodel=64`, `gemma_dmodel=128`
Vision norm	LayerNormalization (custom, with alpha+bias)	LayerNorm (vision) / RMSNorm (language)
CLS token	Yes — prepended to image patches, read at end	No — all patches kept, no pooling
Vision output	`(B, embed_dim)` — 1 vector per image	`(B, num_patches, vision_dmodel)` — all patches
Bridge	None needed (shared space)	LinearProjector: `vision_dmodel → gemma_dmodel`
Language FFN	GELU two-layer MLP	SwiGLU (gated: gate_proj × up_proj → down_proj)
Linear bias	Yes in attention projections	No (Gemma convention)
Weight tying	No	Yes: `lm_head.weight = wte.weight`
Output	`(B, B)` similarity logits + InfoNCE loss	`(B, total_seq_len, vocab_size)` token logits
Position embed	nn.Parameter (raw tensor)	nn.Embedding (lookup table, GPT-2 style)

13 · REFERENCES

Papers & technical sources

Primary reports and references for this chapter. Read these for full equations, training details, and official hyperparameters.

PaliGemma: A versatile 3B VLM (Beyer et al., 2024)SigLIP vision encoder + Gemma decoder, prefix LM on image tokens.
Sigmoid Loss for Language Image Pre-Training (SigLIP)Vision tower loss used in PaliGemma / SigLIP checkpoints.
Gemma 2 technical reportLanguage backbone family PaliGemma builds on.

The shift from matching to generating

PaliGemma vs CLIP (stop 14)

PaliGemmaConfig — dual sub-configs in one dataclass

PaliGemmaConfig vs CLIPConfig (stop 14)

PaliGemma 1 (paper scale)

LayerNorm — subtracts mean before scaling

LayerNorm vs CLIP's LayerNormalization (stop 14)

RMSNorm — faster norm without mean subtraction

RMSNorm vs LayerNorm (section 02)

SigLIPPatchEmbedding — nn.Embedding for positions, not nn.Parameter

SigLIPPatchEmbedding vs CLIP PatchEmbedding (stop 14)

SigLIPAttention — full bidirectional attention, no mask

SigLIPAttention vs CLIP MultiHeadAttention (stop 14)

SigLIPFeedForward + SigLIPEncoderBlock

SigLIPFeedForward vs CLIP FeedForward (stop 14)

SigLIPVisionEncoder — all patches kept, no pooling

SigLIPVisionEncoder vs CLIP ImageEncoder (stop 14)

LinearProjector — the bridge between two embedding spaces

LinearProjector — new in PaliGemma, nothing like it in CLIP

GemmaSwiGLU — gated multiplicative MLP

GemmaSwiGLU vs SigLIPFeedForward (section 06)

GemmaAttention + GemmaDecoderBlock — causal LM layers

GemmaAttention vs SigLIPAttention (section 05)

GemmaDecoder — image-prefix causal language model

GemmaDecoder vs GPT-2 Decoder (stop 02)

PaliGemma — three-stage forward pass

PaliGemma vs CLIP (stop 14) — full model comparison

Architecture comparison table

Papers & technical sources

Comments
